Comparing irregular gridded maps at different resolutions

Author

Paul FAYE

Functions for generating, visualizing, and comparing maps (Faye et al. 2024). The example below illustrates a comparison between two maps at different spatial resolutions, with each map composed of labeled grid cells.

To facilitate meaningful comparison, the map with the finer resolution is disaggregated to match the coarser resolution. Corresponding grid cells are then compared based on their assigned class labels. An agreement score is computed to assess the level of correspondence between the two maps. Grid cells where labels match are marked as “Match = Yes”, providing a straightforward visual and quantitative measure of classification agreement.

1 Prerequisites

To begin, users are required to download and install the following R packages, which are essential for running the analysis. Additionally, the following functions must be sourced from the provided repository on Zenodo. These functions are available for download, and users can access them through the following link: https://doi.org/10.5281/ zenodo.8436795

After installation, ensure that the packages are loaded and the functions are sourced correctly in your R environment before proceeding with the analysis.

1.1 Required R Packages

Code
library(ggplot2)
library(dplyr)
library(stringr)
library(sp)
library(sf)
library(ggspatial)
library(ggpubr)
library(ggnewscale)
library(raster)

1.2 Required functions

Code
source('status-prop.R')
source('disaggregate.R')
source('match.R')
source('balanced-match.R')

2 Study area

2.1 Creation

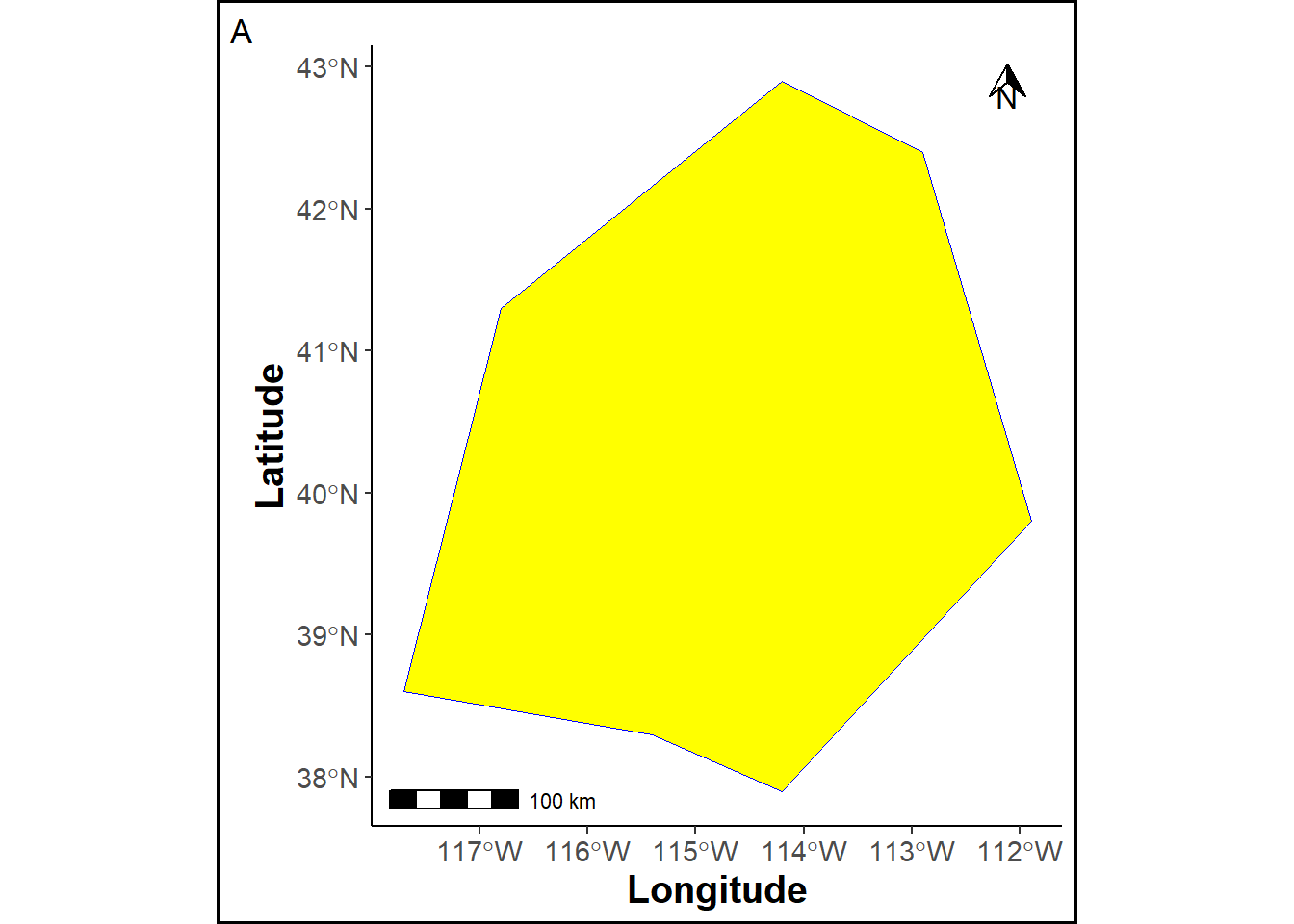

A study area map is created using specified coordinates to form a polygon with the WGS84 reference system.

Code
crdref <- CRS('+proj=longlat +datum=WGS84')
crdref2 <- st_crs('+proj=longlat +datum=WGS84')

lon <- c(-116.8, -114.2, -112.9, -111.9, -114.2, -115.4, -117.7)
lat <- c(41.3, 42.9, 42.4, 39.8, 37.9, 38.3, 38.6)
lonlat <- cbind(lon, lat)
polygon <- Polygon(lonlat)
pols=Polygons(list(polygon), ID = "1")
pols = SpatialPolygons(list(pols), proj4string = CRS("+proj=longlat +datum=WGS84"))
pols_sf=st_as_sf(pols)
st_crs(pols_sf) = crdref

theme_cust = theme(panel.grid.major = element_blank(),
         panel.grid.minor = element_blank(),
          panel.background = element_blank(),
         plot.background = element_rect(colour = "black", fill=NA, linewidth=1),
          legend.key=element_blank(),
          legend.text=element_text(size=15,face="bold"),
         legend.title=element_text(size=15,face="bold"),
         axis.title=element_text(size=15,face="bold"),
          axis.line = element_line(colour = "black"),
          axis.text = element_text(face="bold"),
          axis.text.x = element_text(face="bold", size=11),
          axis.text.y = element_text(face="bold", size=11),
          plot.title=element_text(size=10))


samap = ggplot(pols_sf) +
  labs(x="Longitude", y="Latitude", tag="A")+
   geom_sf(color = "blue", fill="yellow")+
  annotation_scale(location = "bl") +
  annotation_north_arrow(location = "tr", which_north= "true", height = unit(.5, "cm"),
  width = unit(.5, "cm"), pad_x = unit(.5, "cm"))+ theme_cust

samap

2.2 Rasterization

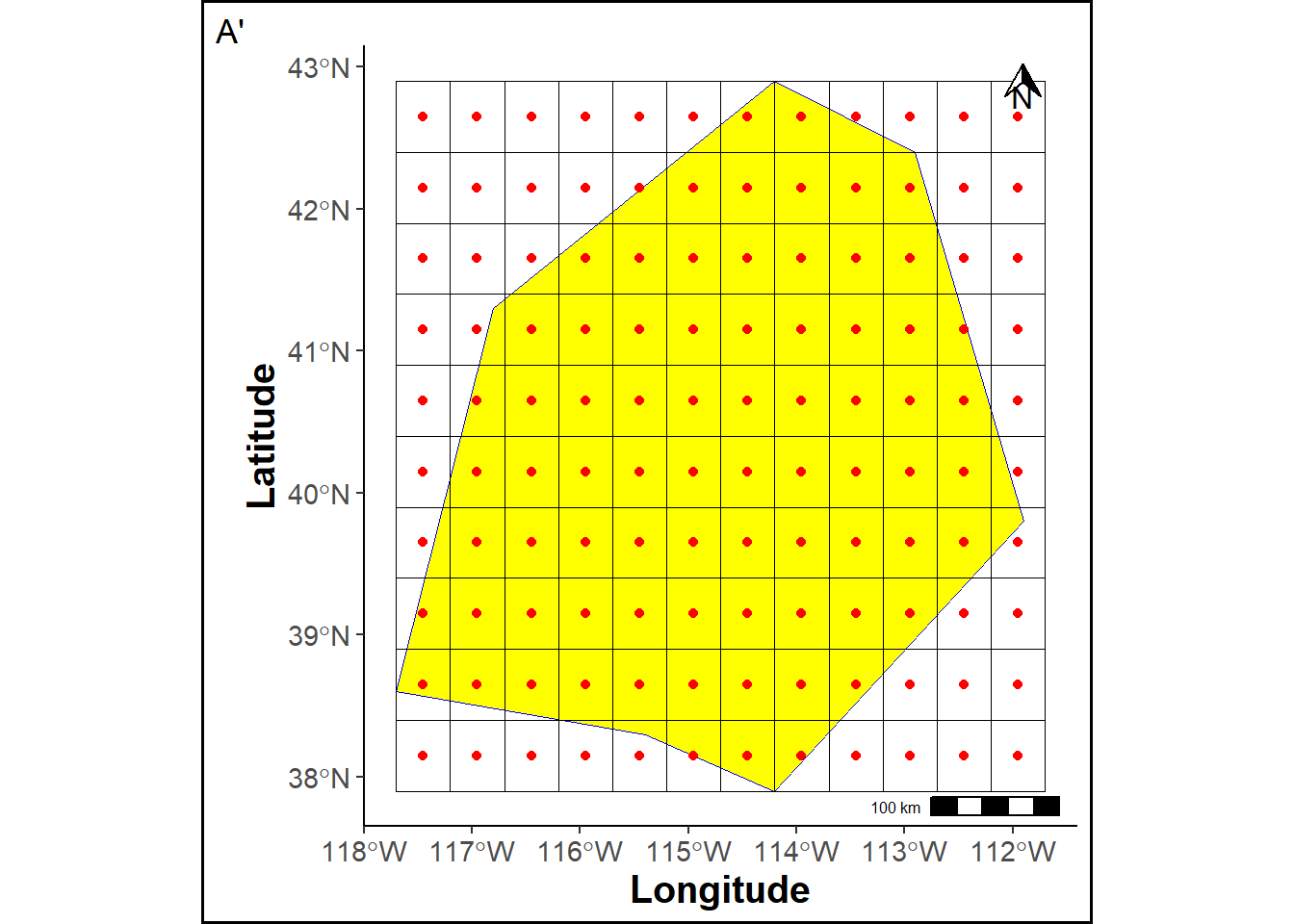

A gridded raster is generated within the study area, with red points overlaying the raster cells, and the polygon, raster, and points are visualized on a map.

Code
ref_sp = raster(xmn = extent(pols)[1], xmx = extent(pols)[2], ymn = extent(pols)[3], ymx = extent(pols)[4], res = c(.5,.5))

crs(ref_sp) = crdref

pts = SpatialPoints(rasterToPoints(ref_sp))

pts_df=as.data.frame(pts)
names(pts_df) = c("Longitude", "Latitude")

values(ref_sp)= rep(0, ncell(ref_sp))

crs(pts) = crdref


ref_sp_df = cbind(xyFromCell(ref_sp, 1:ncell(ref_sp)), values(ref_sp))
ref_sp_df =  as.data.frame(ref_sp_df)
names(ref_sp_df) = c("Longitude", "Latitude", "Class")
ref_sp_df$Class = as.factor(ref_sp_df$Class)


rasmap = ggplot(pols_sf) +
  geom_sf(color = "blue", fill="yellow")+
  geom_tile(data=ref_sp_df, aes(x=Longitude, y=Latitude, fill=Class), color="black", alpha=0)+
  scale_fill_manual("", values = "white", guide="none", limits=force)+
  geom_point(data = pts_df, aes(x=Longitude, y=Latitude), color="red")+
  labs(tag="A'")+
  annotation_scale(location = "br", text_cex = 0.5, pad_y = unit(0.15, "cm")) +
  annotation_north_arrow(location = "tr", which_north= "true", height = unit(.5, "cm"),
  width = unit(.5, "cm"), pad_x = unit(.5, "cm"))+ theme_cust
rasmap

3 Maps

3.1 Reference map

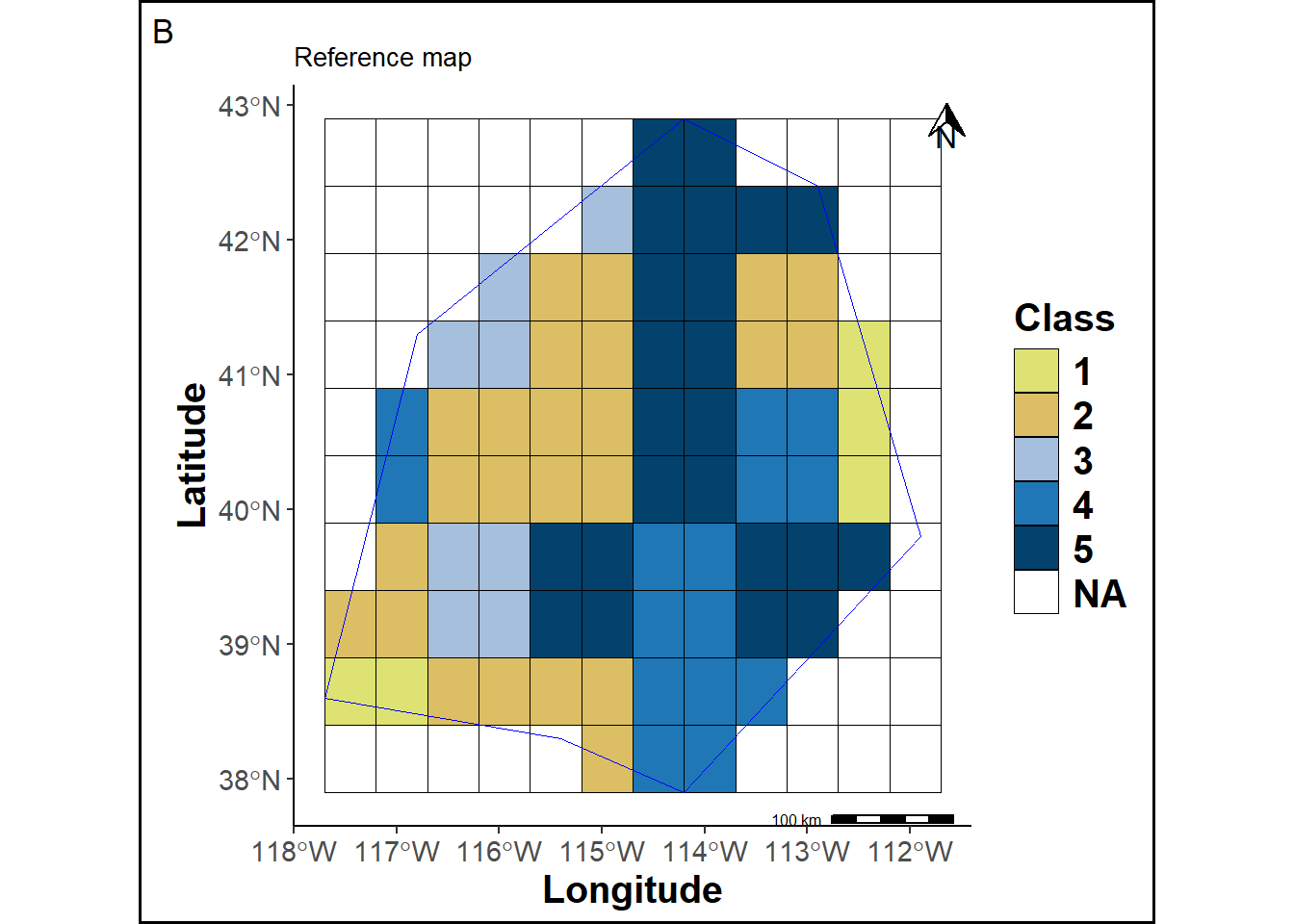

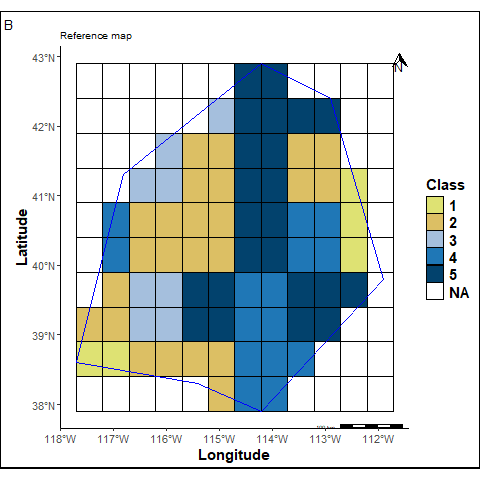

A reference map is created by assigning labels to each raster grid cell.

Code
r = raster(xmn = extent(pols)[1], xmx = extent(pols)[2], ymn = extent(pols)[3], ymx = extent(pols)[4], res = c(1,1))
set.seed(12)
values(r)= sample(1:5, ncell(r), replace=T)
r2 = raster::disaggregate(r, fact=2)

# Put data in the raster
set.seed(1)
values(ref_sp)= values(r2)

# Mask raster
ref_sp_mask = mask(ref_sp, pols, updateNA=T)

ref_sp_mask_df = cbind(xyFromCell(ref_sp_mask, 1:ncell(ref_sp_mask)), values(ref_sp_mask))
ref_sp_mask_df =  as.data.frame(ref_sp_mask_df)
names(ref_sp_mask_df) = c("Longitude", "Latitude", "Class")

ref_sp_mask_df$Class = as.factor(ref_sp_mask_df$Class)


pols_sf = st_as_sf(pols)
st_crs(pols_sf) = crdref

colab = c("1" = "#dee273",
          "2" = "#dcbf64",
          "3" = "#a5bfdd",
          "4" = "#1f77b6",
          "5" = "#02426d")

rmap = ggplot(pols_sf) +
  geom_tile(data=ref_sp_mask_df, aes(x=Longitude, y=Latitude, fill=Class), linewidth=0.1, color="black")+
  labs(title ="Reference map", tag="B")+
  scale_fill_manual("Class", values = colab, na.value = "white", limits=force) +
  geom_sf(color = "blue", fill=NA) +
  annotation_scale(location = "br", text_cex = 0.5, pad_y = unit(0.05, "cm"),
  height = unit(0.1, "cm")) +
  annotation_north_arrow(location = "tr", which_north= "true", height = unit(.5, "cm"),
  width = unit(.5, "cm"), pad_x = unit(.1, "cm"))+theme_cust


png("refmap.png")
print(rmap)
invisible(invisible(dev.off()))

rmap

3.2 Prediction map

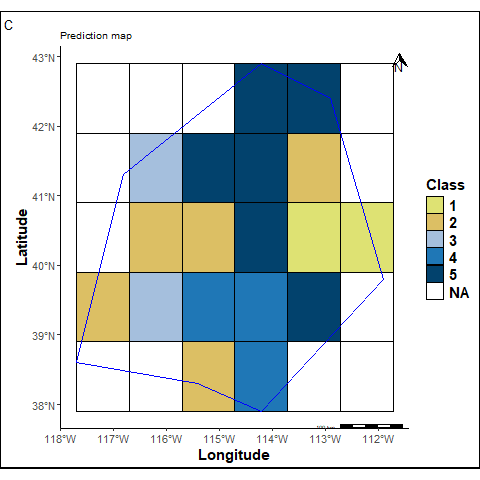

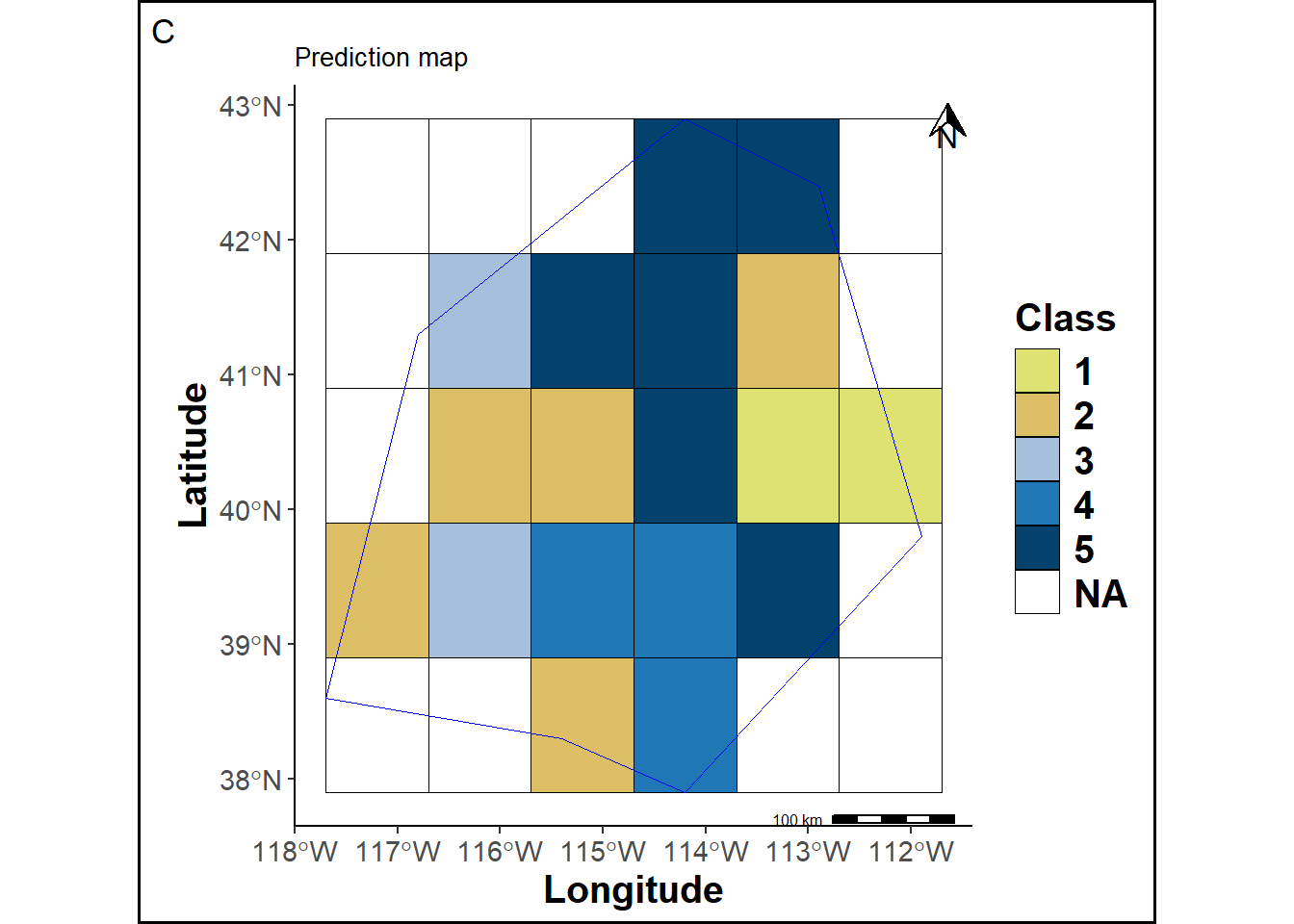

A prediction map is created by assigning labels to each raster grid cell for comparison.

Code
pred_sp = r
pred_sp[[1]][c(9,17,21)] = c(5,1,4)

pred_sp_mask = mask(pred_sp, pols, updateNA=T)

pred_sp_mask_df = cbind(xyFromCell(pred_sp_mask, 1:ncell(pred_sp_mask)), values(pred_sp_mask))
pred_sp_mask_df =  as.data.frame(pred_sp_mask_df)
names(pred_sp_mask_df) = c("Longitude", "Latitude", "Class")


pred_sp_mask_df$Class = as.factor(pred_sp_mask_df$Class)

pmap = ggplot(pols_sf) +
  geom_tile(data=pred_sp_mask_df, aes(x=Longitude, y=Latitude, fill=Class), linewidth=0.1, color="black")+
  scale_fill_manual("Class", values = colab, na.value = "white", limits=force) +
  labs(title ="Prediction map", tag="C") +
  geom_sf(color = "blue", fill=NA) +
  annotation_scale(location = "br", text_cex = 0.5, pad_y = unit(0.05, "cm"),
  height = unit(0.1, "cm")) +
 annotation_north_arrow(location = "tr", which_north= "true", height = unit(.5, "cm"),
  width = unit(.5, "cm"), pad_x = unit(.1, "cm"))+theme_cust


png("predmap.png")
print(pmap)
invisible(dev.off())

pmap

4 Analysis

4.1 Cell Size Adjustment

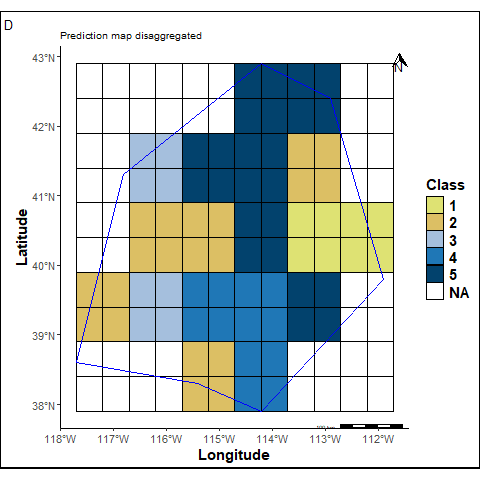

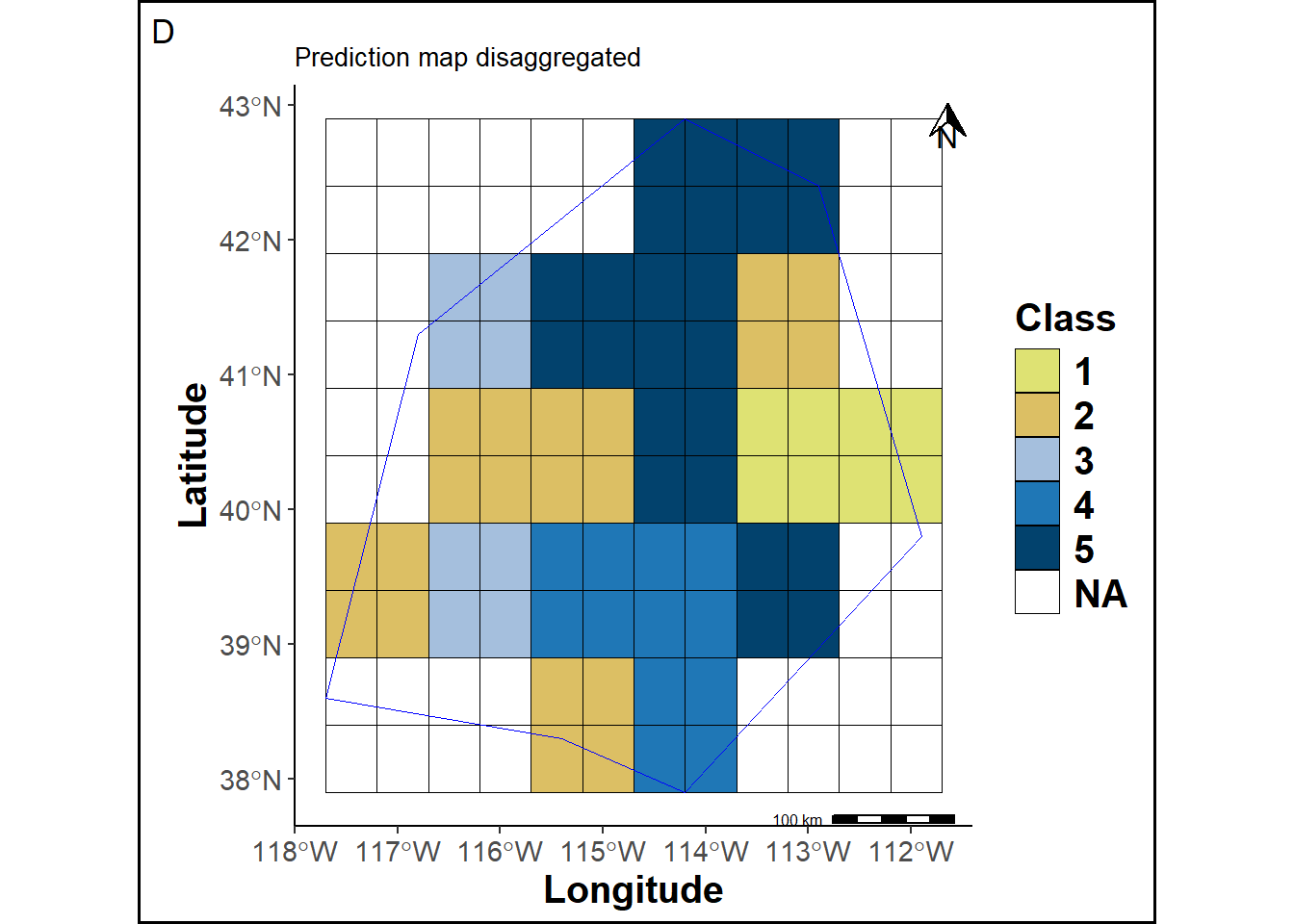

The prediction map cells are adjusted to match the cell size of the reference map.

Code
pred_sp_dis = disagRast(pols, pred_sp_mask, ref_sp, crdref)


pred_sp_dis_df = cbind(xyFromCell(pred_sp_dis, 1:ncell(pred_sp_dis)), values(pred_sp_dis))
pred_sp_dis_df =  as.data.frame(pred_sp_dis_df)
names(pred_sp_dis_df) = c("Longitude", "Latitude", "Class")


pred_sp_dis_df$Class = as.factor(pred_sp_dis_df$Class)

pmapdis = ggplot(pols_sf) +
  geom_tile(data=pred_sp_dis_df, aes(x=Longitude, y=Latitude, fill=Class), linewidth=0.1, color="black")+
  scale_fill_manual("Class", values = colab, na.value = "white", limits=force) +
  labs(title ="Prediction map disaggregated", tag="D") +
  geom_sf(color = "blue", fill=NA) +
  annotation_scale(location = "br", text_cex = 0.5, pad_y = unit(0.05, "cm"),
  height = unit(0.1, "cm")) +
 annotation_north_arrow(location = "tr", which_north= "true", height = unit(.5, "cm"),
  width = unit(.5, "cm"), pad_x = unit(.1, "cm"))+theme_cust


png("predismap.png")
print(pmapdis)
invisible(dev.off())

pmapdis

4.2 Cell marking

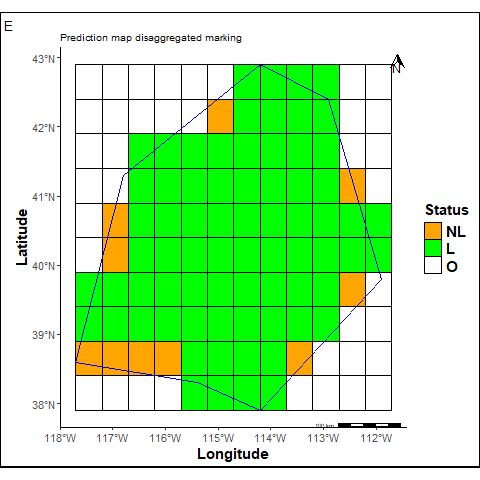

The prediction map cells are labeled according to their location in the grid.

Code
ref_spbis=ref_sp
ref_spbis[is.na(ref_spbis)] = 999
# Cells outside the study area

outstudy = mask(ref_spbis, pols, updateNA=T)

status = statusProp(pred_sp_dis, ref_sp, outstudy[[1]], pols, 4326)

out_df = status[[1]]
inP_df = status[[2]]
inNP_df = status[[3]]
PropNL = status[[4]]
PropL = status[[5]]

allcells = rbind(out_df, inP_df, inNP_df)
names(allcells) = c("Longitude", "Latitude", "Class", "Location")

colab3 = c("Outside"="white", "Inside-P"="green", "Inside-Non-P"="orange")
lab3 = c("Outside"= "O", "Inside-P"="L", "Inside-Non-P"="NL")
statusmap =  ggplot(pols_sf) +
  geom_tile(data=allcells, aes(x=Longitude, y=Latitude, fill=Location), linewidth=0.1, color="black")+
  scale_fill_manual("Status", values = colab3, labels = lab3, limits=force) +
  labs(title ="Prediction map disaggregated marking", tag="E") +
  geom_sf(color = "blue", fill=NA) +
  annotation_scale(location = "br", text_cex = 0.5, pad_y = unit(0.05, "cm"),
  height = unit(0.1, "cm")) +
  annotation_north_arrow(location = "tr", which_north= "true", height = unit(.5, "cm"),
  width = unit(.5, "cm"), pad_x = unit(.1, "cm"))+theme_cust


png("statusmap.png")
print(statusmap)
invisible(dev.off())

statusmap

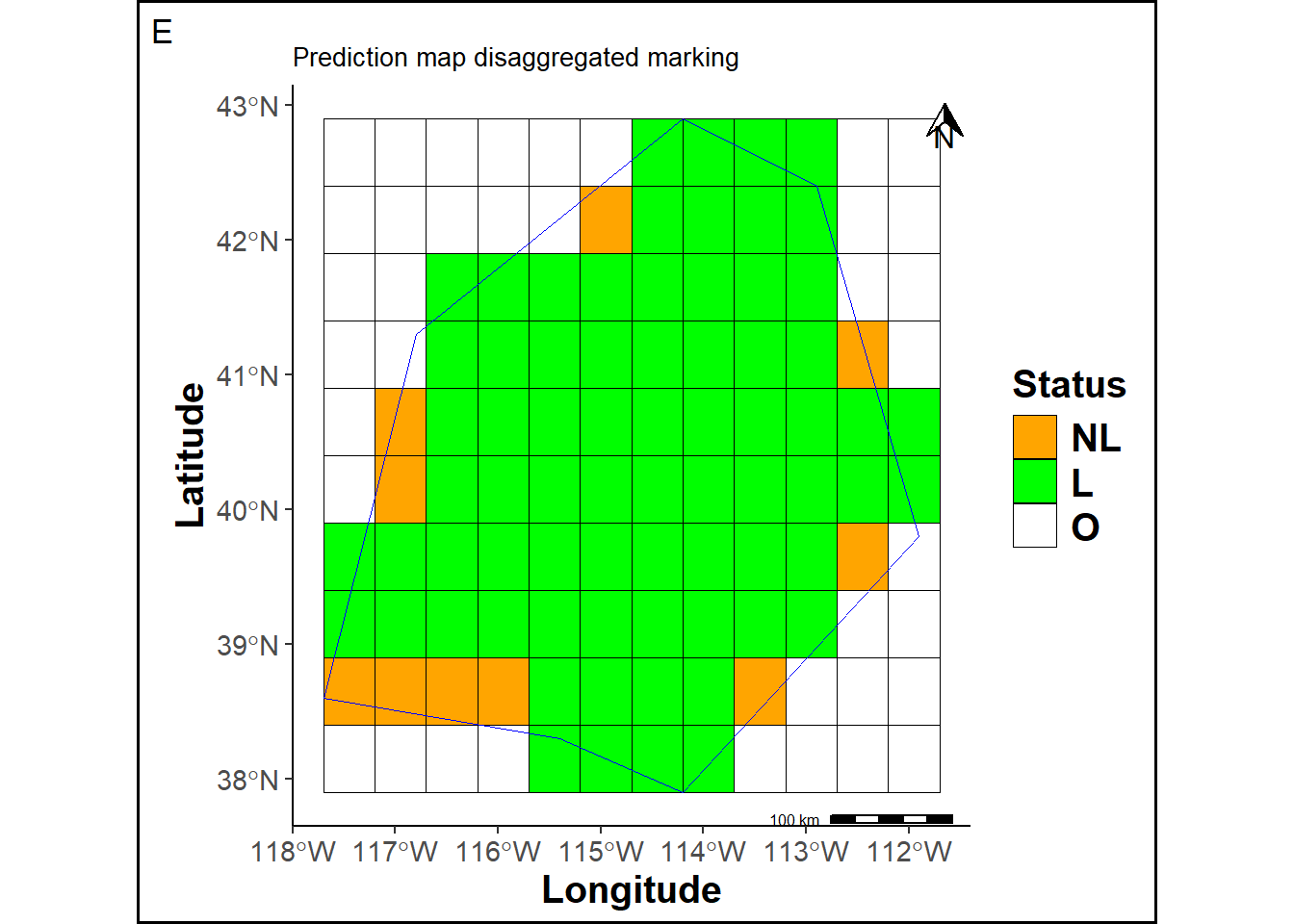

The disaggregation of the prediction map will generate borders effects.

Code
p1 =  ggpubr::ggarrange(rmap, pmap, pmapdis, statusmap,  ncol = 2, nrow = 2)

O = Cells outside the study area. We count 45 such cells.

L + NL = Marked cells from the original prediction map, totaling 82 cells.

L = Marked cells within the study area. We count 72 cells, which represents 0.88% of the total cells inside the study area.

NL = Unmarked (non-labeled) cells within the study area. We count 10 cells, corresponding to 0.12%.

4.3 Compare the two maps

The reference and the predicted maps are stacked to calculate the following “Match” and a “Balanced Match” scores.

4.3.1 “Match” score

The match sccore corresponds to the proportion of cells that are identical in the both maps. It is calculated as follows:

\[\begin{equation} Match \ (Yes) = \frac{N_{+}}{N_{+} + N_{-}} \end{equation}\]

where \(N_{+}\) are cells which labels are similar in the two maps and \(N_{-}\) are cells which labels are different in the two maps.

Code
matchstats = matchRast(pred_sp_dis, ref_sp_mask, precision=2, correct=F)

match = subset(matchstats[[1]][,], layer==1)[,3]

mismatch = subset(matchstats[[1]][,], layer==0)[,3]

comp_sp = cbind(xyFromCell(matchstats[[2]], 1:ncell(matchstats[[2]])), values(matchstats[[2]]))
comp_sp_df =  as.data.frame(comp_sp)
names(comp_sp_df) = c("Longitude", "Latitude", "Class")


comp_sp_df$Class = as.factor(comp_sp_df$Class)

colab2 = c("1" = "seagreen", "0" = "yellow")

pmapcomp = ggplot(pols_sf) +
  geom_tile(data=comp_sp_df, aes(x=Longitude, y=Latitude, fill=Class), linewidth=0.1, color="black")+
  scale_fill_manual("Match", values = colab2, labels= c("1"=str_glue("Yes = {match}"), "0"= str_glue("No = {mismatch}")), na.value = NA, limits=force) +
  new_scale_fill()+
  geom_tile(data=subset(allcells, Location=="Inside-Non-P"), aes(x=Longitude, y=Latitude), fill="orange", linewidth=0.1, color="black")+
  labs(title ="Non corrected Match", tag="F") +
  geom_sf(color = "blue", fill=NA) +
  annotation_scale(location = "br", text_cex = 0.5, pad_y = unit(0.05, "cm"),
  height = unit(0.1, "cm")) +
  annotation_north_arrow(location = "tr", which_north= "true", height = unit(.5, "cm"),
  width = unit(.5, "cm"), pad_x = unit(.1, "cm"))+theme_cust

png("pmapcomp.png")
print(pmapcomp)
invisible(dev.off())


########################################################################

matchstats = matchRast(pred_sp_dis, ref_sp_mask, precision=2, correct=T)

match = subset(matchstats[[1]][,], layer==1)[,3]

mismatch = subset(matchstats[[1]][,], layer==0)[,3]


comp_sp_corr = cbind(xyFromCell(matchstats[[2]], 1:ncell(matchstats[[2]])), values(matchstats[[2]]))
comp_sp_corr_df =  as.data.frame(comp_sp_corr)
names(comp_sp_corr_df) = c("Longitude", "Latitude", "Class")

comp_sp_corr_df$Class = as.factor(comp_sp_corr_df$Class)

colab2 = c("1" = "seagreen", "0" = "yellow")

pmapcompcorr = ggplot(pols_sf) +
  geom_tile(data=comp_sp_corr_df, aes(x=Longitude, y=Latitude, fill=Class), linewidth=0.1, color="black")+
   scale_fill_manual("Match", values = colab2, labels= c("1"=str_glue("Yes = {match}"), "0"= str_glue("No = {mismatch}")), na.value = NA, limits=force) +
  labs(title ="Corrected Match ", tag="G") +
  geom_sf(color = "blue", fill=NA) +
  annotation_scale(location = "br", text_cex = 0.5, pad_y = unit(0.05, "cm"),
  height = unit(0.1, "cm")) +
  annotation_north_arrow(location = "tr", which_north= "true", height = unit(.5, "cm"),
  width = unit(.5, "cm"), pad_x = unit(.1, "cm"))+theme_cust

png("pmapcompcorr.png")
print(pmapcompcorr)
invisible(dev.off())

#p3 <- ggarrange(rmap, pmapcomp, pmapdis, pmapcompcorr, ncol = 2, nrow = 2)

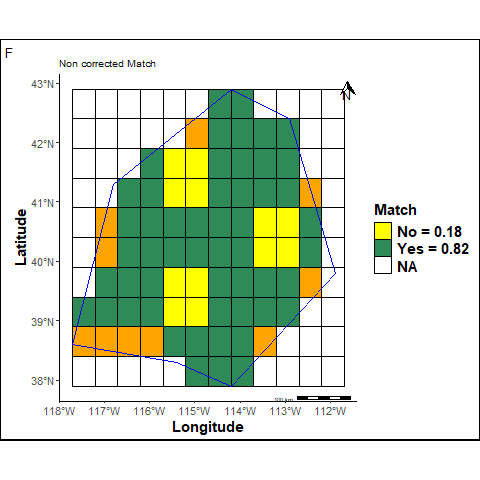

F: The Non corrected Match is calculated omitting unpredicted cells inside the study area (orange cells).

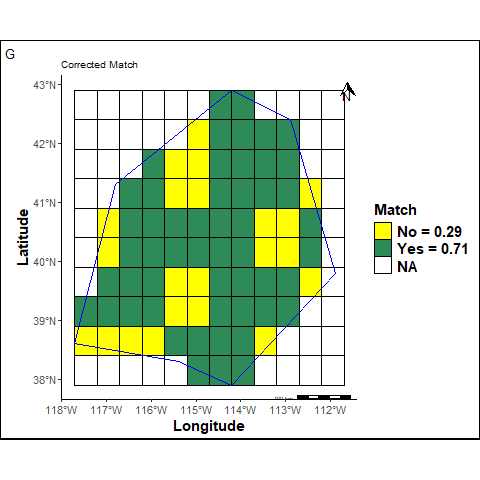

G: The Corrected Match is calculated considering unpredicted cells inside the study area as bad predictions.

4.3.2 “Balanced Match” score

The Balanced Match consists in the arithmetic mean of the recall of each class. Recall for each class answers the question “how likely will an individual of that class be classified correctly ?”. It is “balanced” because every class has the same weight and the same importance.

4.3.2.1 Non Corrected Balanced Match

The non corrected balanced match takes into account only L cells inside the study area.

  • Confusion Matrix (without NL cells)
Code
balmatch = balmatchRast(pred_sp_dis, ref_sp_mask, correct=F)

balmatch[[1]]$table
          Reference
Prediction  1  2  3  4  5
         1  2  0  0  4  0
         2  0 18  0  0  0
         3  0  0  7  0  0
         4  0  0  0  8  4
         5  0  4  0  0 18

\(TP_{k}\) (True Positives): observations predicted to belong to the class \(k\) when then really do.

\(FN_{k}\) (False Negatives): observations predicted to not belong to the class \(k\) when they really do.

  • Recall per class
\[\begin{equation} Recall_{k} = TP_{k}/(TP_{k} + FN_{k}) \end{equation}\]
Code
balmatch[[1]]$byClass[, 6]
 Class: 1  Class: 2  Class: 3  Class: 4  Class: 5
1.0000000 0.8181818 1.0000000 0.6666667 0.8181818
  • Non Corrected Balanced Match (NCBM)
\[\begin{equation} NCBM = \frac{1}{K}\displaystyle \sum_{k=1}^{K}Recall_{k} = 0.86 \end{equation}\]

where \(K\) (the number of classes) = 5.

4.3.2.2 Corrected Balanced Match (Proposition 1)

The corrected balanced match takes into account NL cells inside the study area as bad predictions.

\[\begin{equation} CBM_{1} = NCBM \times (1 - \% NL) = 0.76 \end{equation}\]

4.3.2.3 Corrected Balanced Match (Proposition 2)

  • Confusion Matrix (including NL cells)

The 99 class in the following confusion matrix corresponds to previous NL cells in the predicted map.

Code
balmatch = balmatchRast(pred_sp_dis, ref_sp_mask, correct=T)
balmatch[[1]]$table
          Reference
Prediction  1  2  3  4  5 99
        1   2  0  0  4  0  0
        2   0 18  0  0  0  0
        3   0  0  7  0  0  0
        4   0  0  0  8  4  0
        5   0  4  0  0 18  0
        99  3  2  1  3  1  0
  • Recall per class
Code
balmatch[[1]]$byClass[, 6]
 Class: 1  Class: 2  Class: 3  Class: 4  Class: 5 Class: 99
0.4000000 0.7500000 0.8750000 0.5333333 0.7826087        NA
  • Corrected Balanced Match

By convention, the Recall of the impredictible class (99) is equal to 0.

\[\begin{equation} CBM_{2} = \frac{1}{K}\displaystyle \sum_{k \neq 99}^{K}Recall_{k} = 0.56 \end{equation}\]

where \(K\) (the total number of classes) = 6.

References

Faye, Paul Aimé Latsouck, Elodie Brunel, Thomas Claverie, Solym Mawaki Manou-Abi, and Sophie Dabo-Niang. 2024. “Automatic Geomorphological Mapping Using Ground Truth Data with Coverage Sampling and Random Forest Algorithms.” Earth Science Informatics 17 (4): 3715–32.
